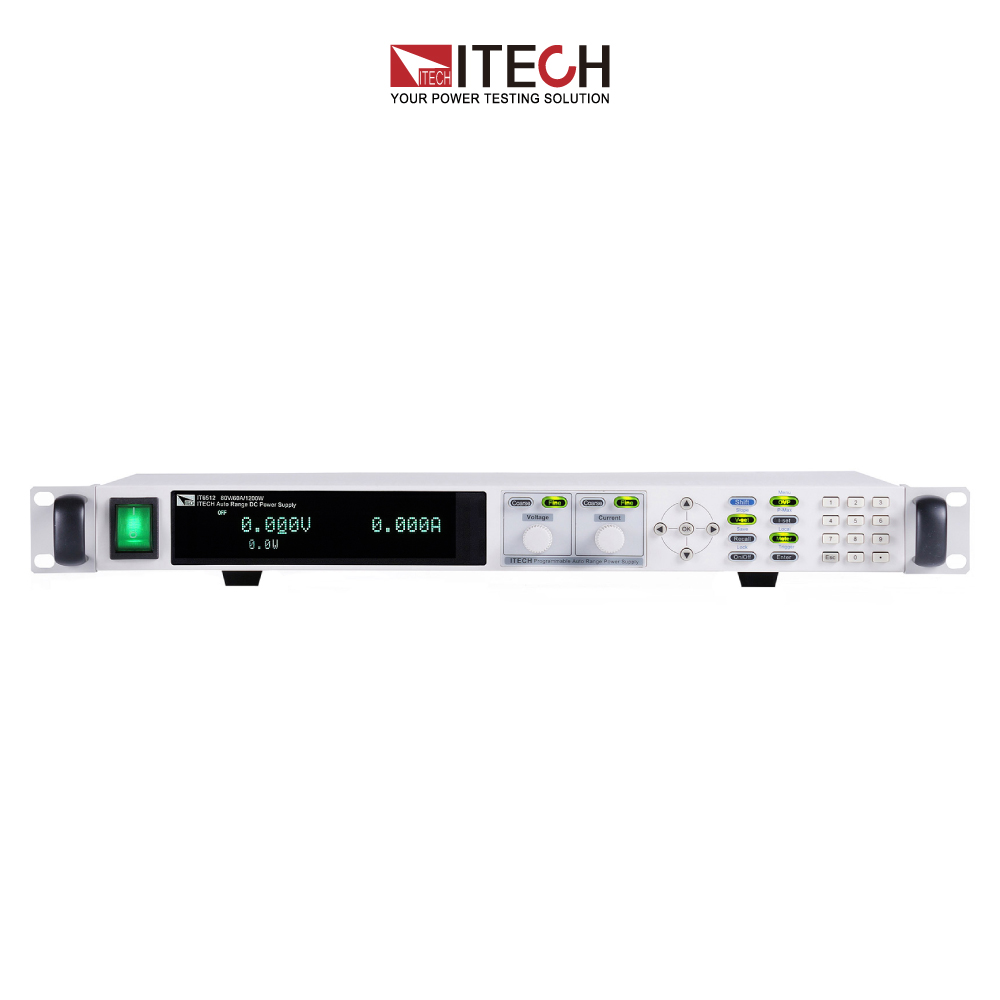

IT6502D/IT6512/IT6512A (ITECH IT6512) : Good performance and compact size, designed for general purpose testing in R&D and production.
IT6500C series (ITECH IT6512) : Seamless two quadrant operation, multi-functional and with fast response. Designed for continuous source and sink testing requirements. Useful for solar panel IV simulation, DC motors and battery test. Variable output impedance and slew rate settings.
IT6500D series (ITECH IT6512) : High performance with stable output, designed for automobile, green energy, high speed testing, high-power testing etc.
DC Output Ratings:
- Maximum 1200 W
- Maximum Output voltage: 0-80 V
- Resolution: 1 mV
- Current: 0-60 A
- Resolution: 0.1 mA
- Ripple: <30 mVpp
Setup Accuracy:
- Voltage: <0.02% + 30 mV
- Current: <0.1% + 0.1% of full scale
Feature set:
- Intelligent fan control. Low acoustic noise
- Accurate readback of current and voltage
- Slew rate setting
- CV/CC/CP mode
- Remote sense
- LIST mode
- DIN 40839 and ISO-16750-2 voltage curve
- Master/Slave mode for more units in parallel
- Extensive protection
- High accuracy and resolution
Connectivity:
- RS-232, RS-484 and USB
- SCPI programming
- Analog control
